IRT/FT.01 Series Fission Type Infrared Temperature Sensor Connect the electronic box with a high temperature cable, so that the infrared sensor probe can directly work at a high temperature of 120 C
XY-FT Series,Fission Type Infrared Temperature Sensor, Suitable For High Temperature Environment Of 120℃
• Temperature measurement range: -30℃~1200℃ (can be segmented, other temperature segments can be expanded)
• Suitable for measuring non-metal or coated metal
• Short circuit protection, reverse polarity protection
• Emissivity 0.95 or 1.0 (default 1.0)
• Output signal 4-20mA
Xingyan Electronics XY-FT series Infrared Temperature Sensor is a range of high quality,, compact sensors which measure the temperature of inaccessible or moving objects and materials;

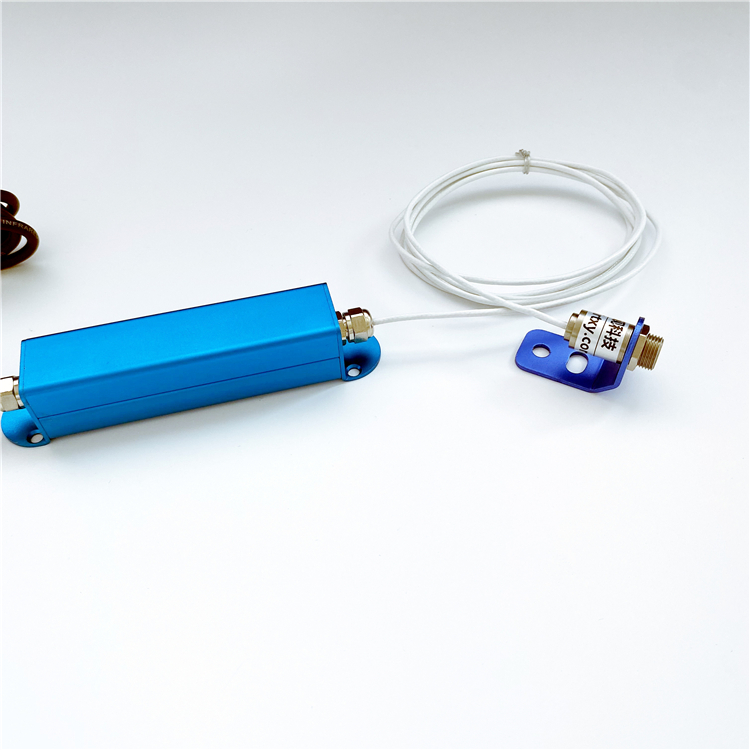

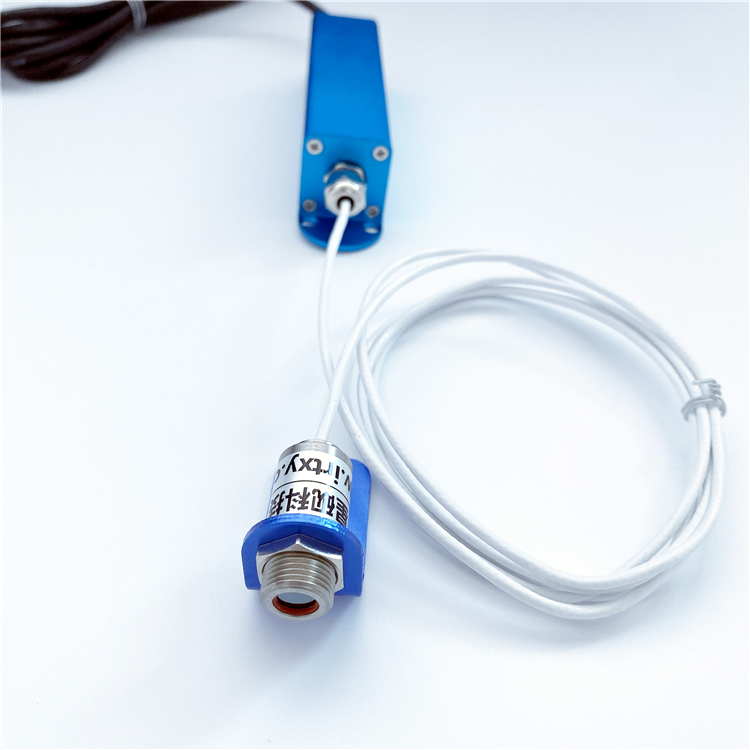

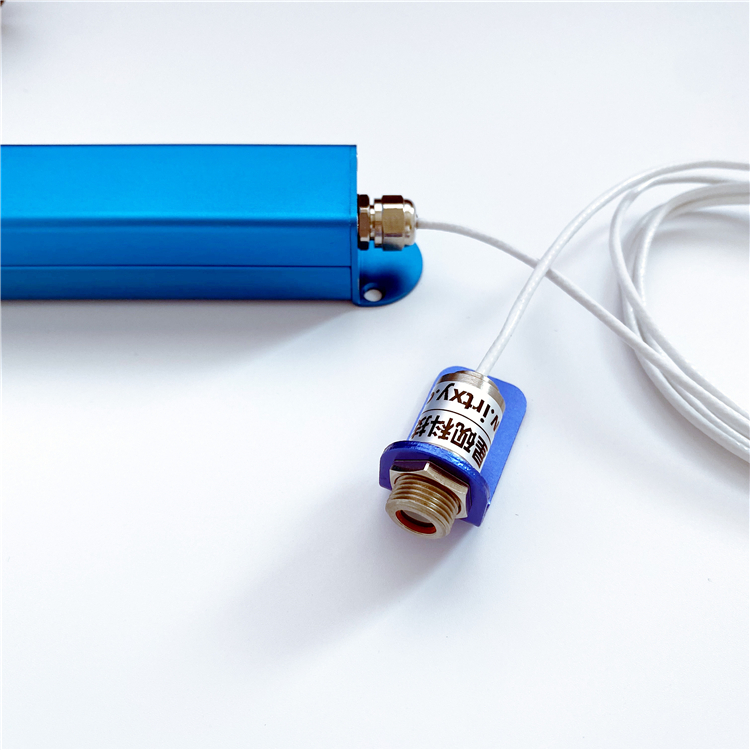

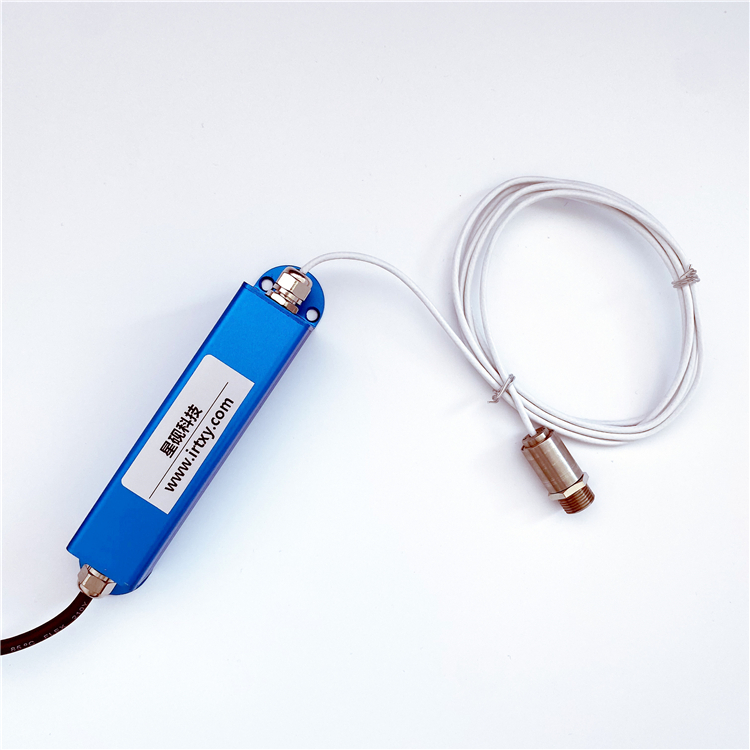

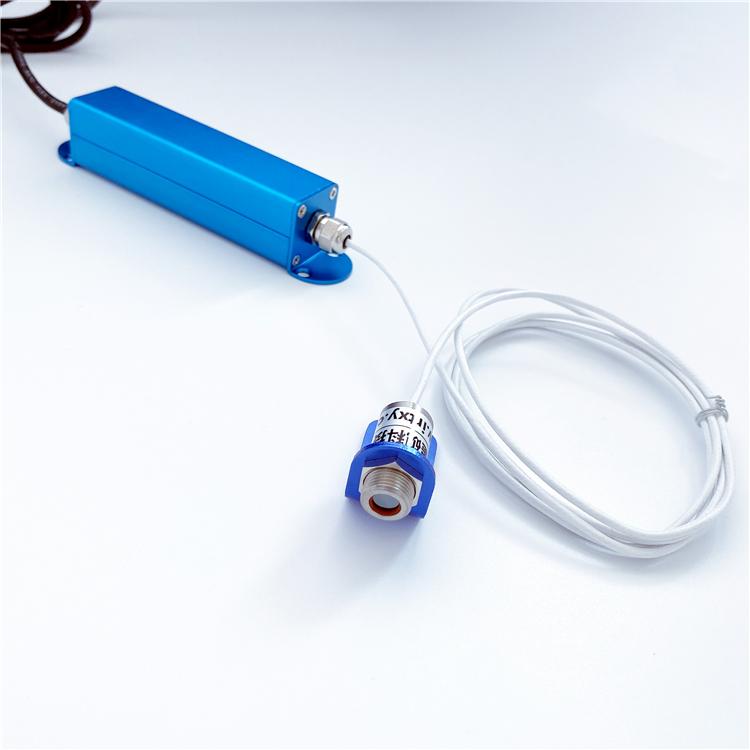

The optical system and the electronic circuit are integrated in the aluminum alloy electronic box, and the stainless steel shell probe integrates the sensing system;
Connect the electronic box with a high temperature cable, so that the infrared sensor probe can directly work at a high temperature of 120 °C;
Various options (purgers, mounting brackets, adjustable mounting brackets, purge protective sleeves, etc.) are available to meet the requirements of various working conditions.
Basic Details
Model: XY-FTSeries
Range: -20℃~100℃ / 0℃~100℃ / 0℃~200℃ / 0℃~300℃ / 0℃~500℃ / 0℃~600℃ / 0℃~800℃ ......（Optional temperature range）
Output: 4-20mA
Accuracy: ±2% or ±2°C（Ambient temperature: 23℃±5℃）
Repeatability: ± 1℃
Emissivity: 0.95 or 1.0 (default 0.95)
Response time: 75 ms (95% Response)
Spectral range: 8 ~14 μm
Voltage: 24 V DC
Field of View: 20:1
Maximum current:50mA
Appearance properties
Material: Stainless steel (Probe), Aluminum alloy (Electronic box)
Dimensions: Φ14×28mm
Hole size: M14
cable length: 2m (Communication cable), 1.5m (High temperature cable)
Weight: About 220g
Use environment
Environmental (IP) rating: IP65
Ambient temperature: 0℃~120℃
Humidity: 95% (No condensation)
