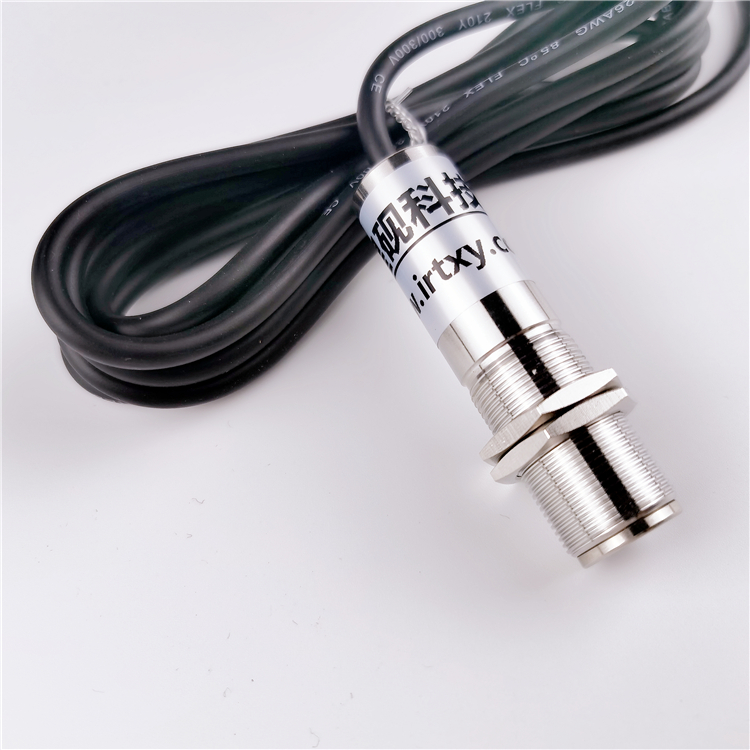

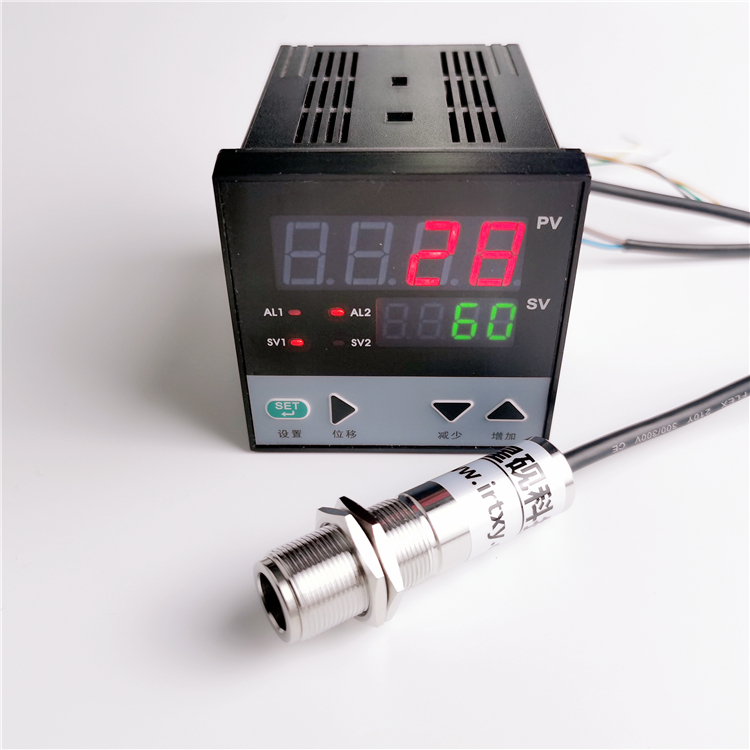

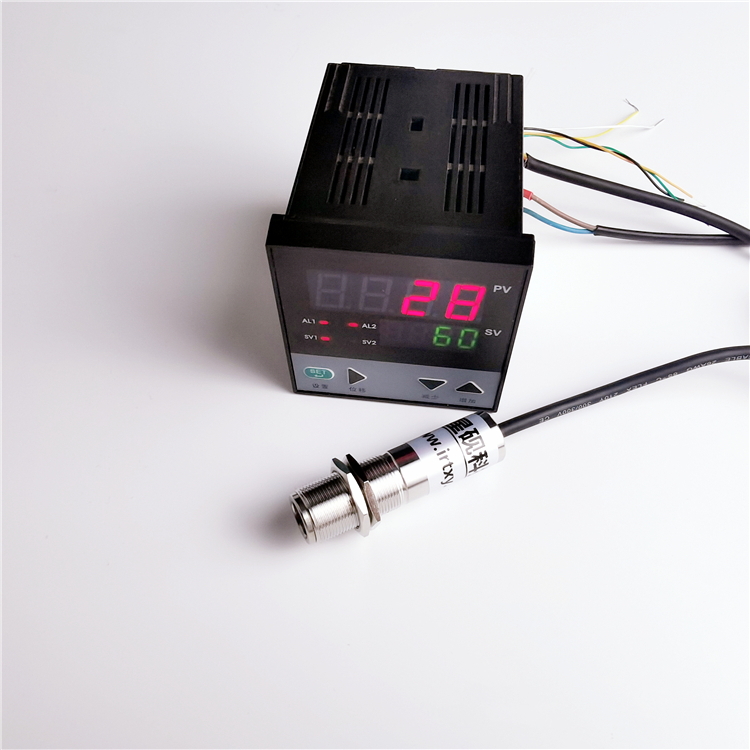

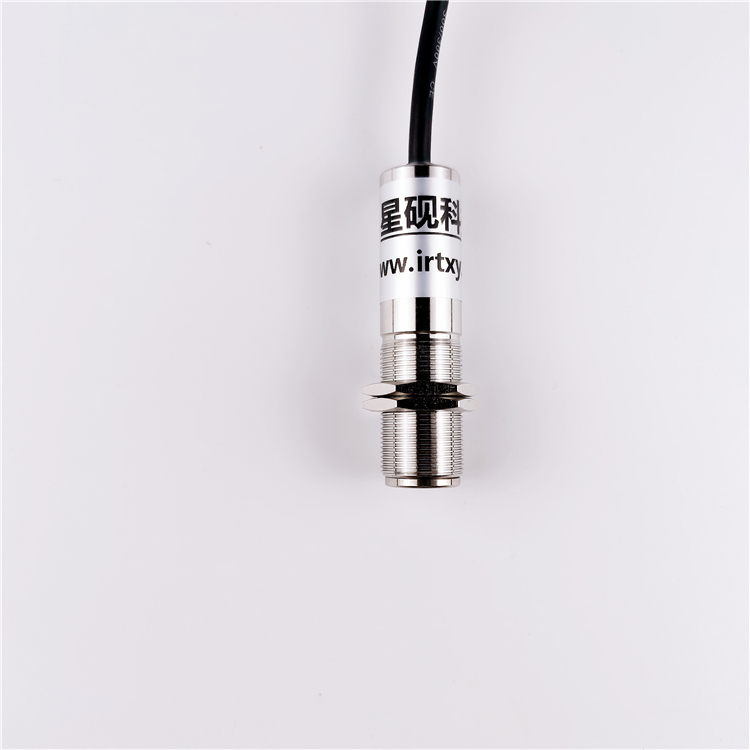

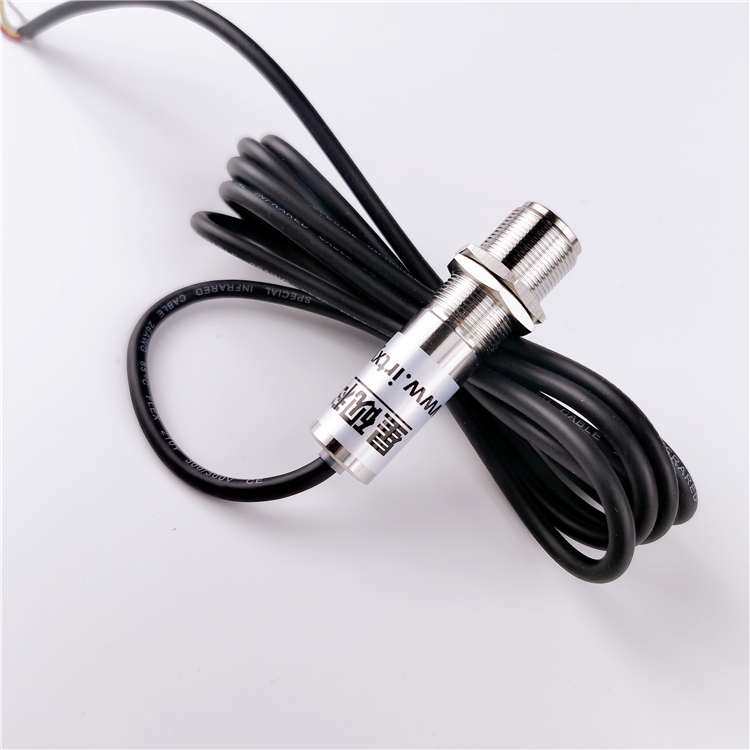

XY-DT-A(V;RS485) Series Infrared Temperature Sensor With 4-20mA/0-5V/RS485 Output Signal

•   Temperature measurement range -20°C ~ 500°C

•   Non-contact temperature measurement

•   Fixed emissivity 0.95

•   Optional anti-microwave function

•   Suitable for measuring non-metal or coated metal

•   Cable length 2 meters (various lengths can be customized)

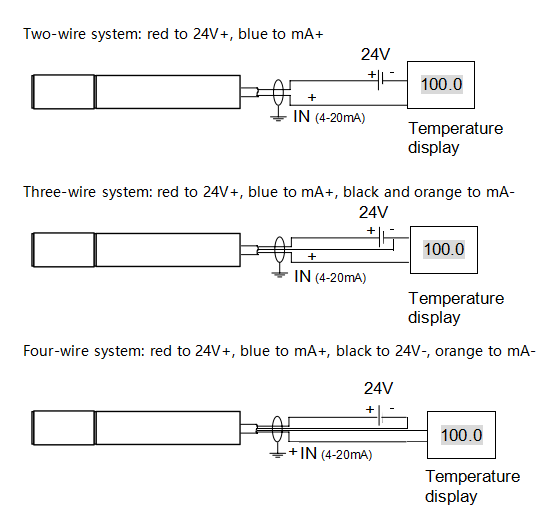

•   2-wire, 3-wire, 4-wire output

•   Responsive and high quality

Xingyan Electronics is committed to the development, promotion and development of infrared temperature measurement application technology.

The company's infrared temperature measurement products are widely used in modern production, and are suitable for all industries that require non-contact temperature measurement, such as metallurgy, heat treatment, chemical industry, electric power, photovoltaic, cement, glass, refractory materials, and crystal material production.

Infrared Temperature Sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

Basic Details

Model:               XY-DT Series

Range:               -20℃~100℃ / 0℃~100℃ / 0℃~200℃ / 0℃~300℃ / 0℃~500℃ ......

                        （Optional temperature range）

Output:              4-20mA / 0-5V / RS485

Accuracy:           ±1% or ±1°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  300 ms (95% Response)

Spectral range:   8 ~14 μm

Voltage:             12-24 V DC

Field of View:     20:1

Maximum current:25mA

Appearance properties

Material:             Stainless Steel

Dimensions:       Φ18×68mm

Hole size:            M18

cable length:       2m(Can be customized length)

Weight:               About 150g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
