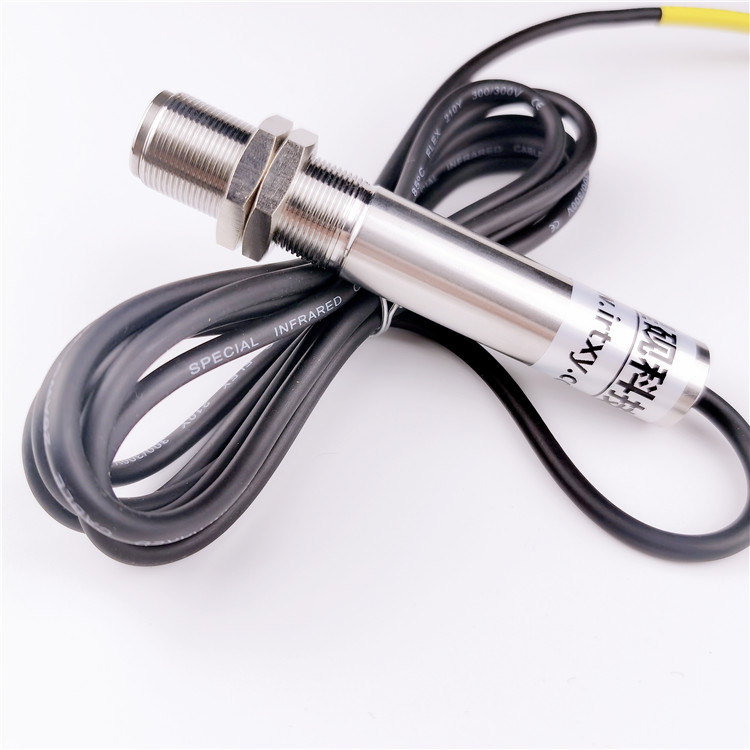

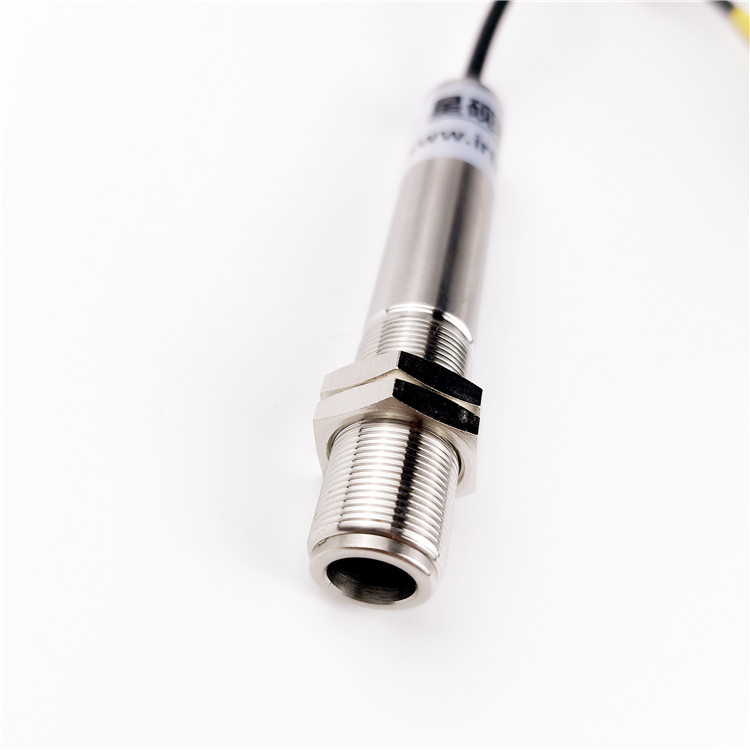

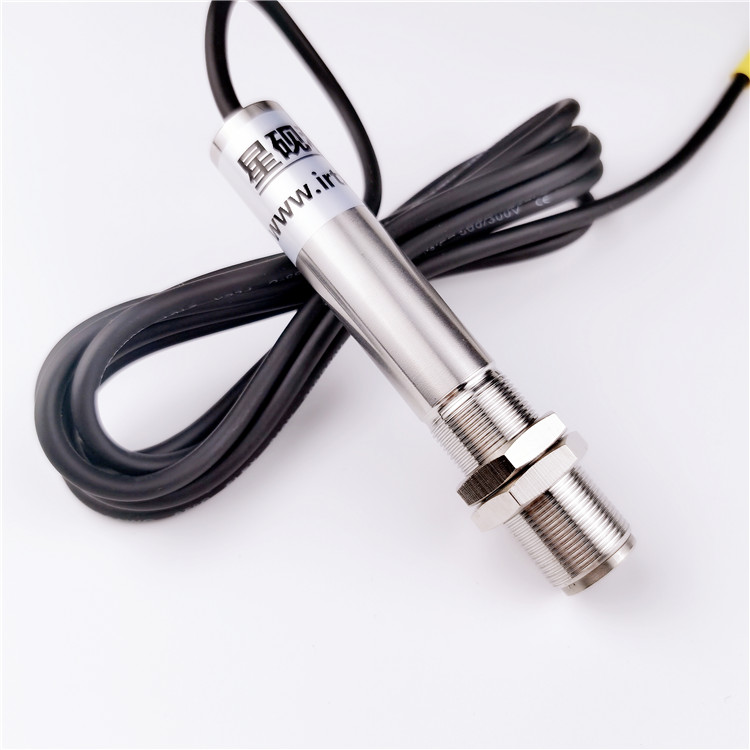

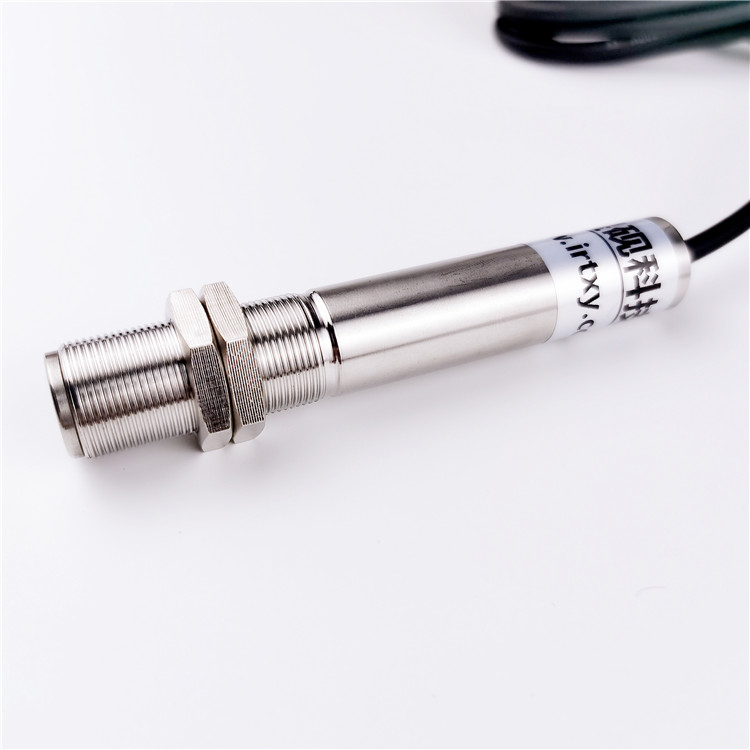

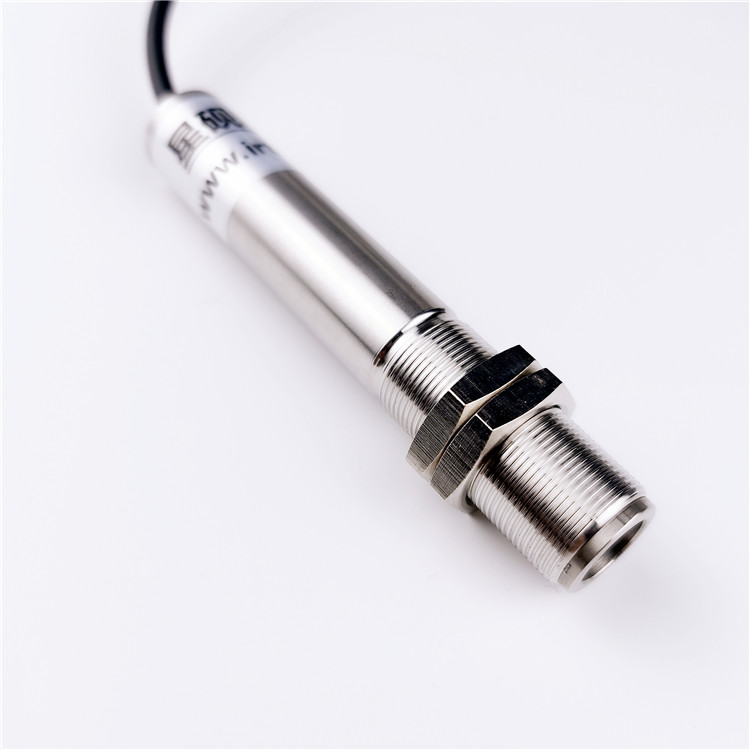

XY-RTU Series, Infrared Temperature Sensor With RS485 Output Signal, Fast Response

•  Non-contact temperature measurement

•  Temperature measurement range 0°C ~ 500°C

•   Fixed emissivity 0.95

•   Suitable for measuring non-metal or coated metal

•   The output signal is RS485

•   Support Modbus-RTU standard communication protocol

•   Made of 304 stainless steel

•   Cable length 2 meters (various lengths can be customized）

•   2-wire, 3-wire, 4-wire output

•   Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

Xingyan Electronics Non-contact Infrared Temperature Sensor is a range of high quality, low cost, compact sensors which measure the temperature of inaccessible or moving objects and materials.

Materials including paper, thick plastics, rubber, food and organic materials, as well as painted metals and most dirty, rusty or oily surfaces, are measured accurately, safely and cleanly.

Infrared Temperature Sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

Basic Details

Model:               XY-RTU Series

Range:               0℃~500℃（Optional temperature range）

Output:              RS485

Accuracy:           ±1% or ±1°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  300 ms (95% Response)

Spectral range:   8 ~14 μm

Voltage:             12-24 V DC

Field of View:     20:1

Maximum current:50mA

Appearance properties

Material:             Stainless Steel

Dimensions:       Φ18×108mm

Hole size:            M18

cable length:       2m(Can be customized length)

Weight:               About 180g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
