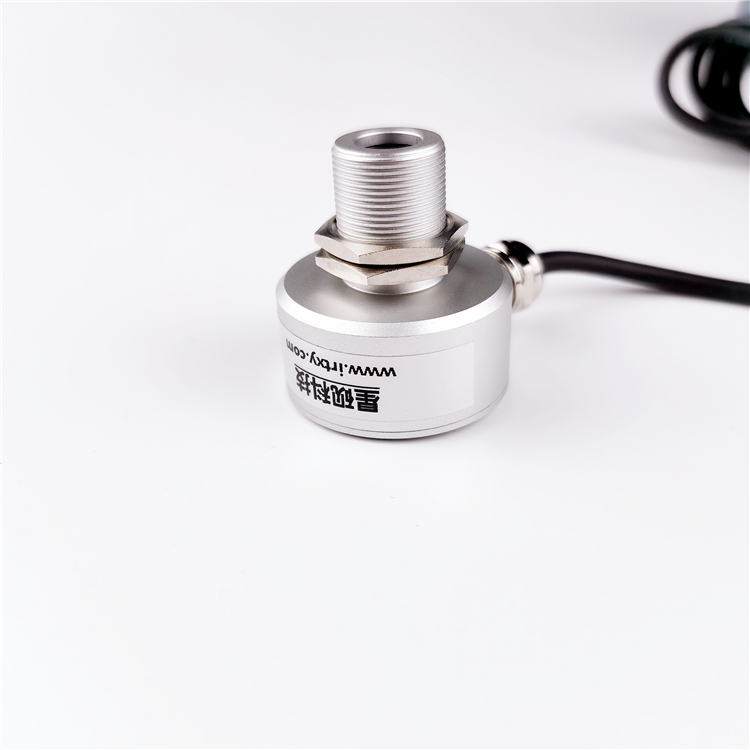

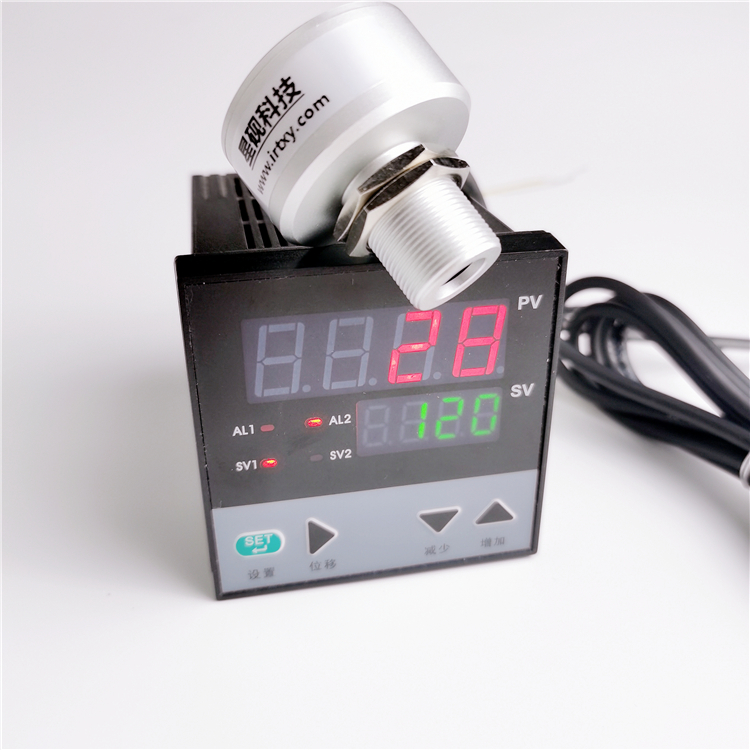

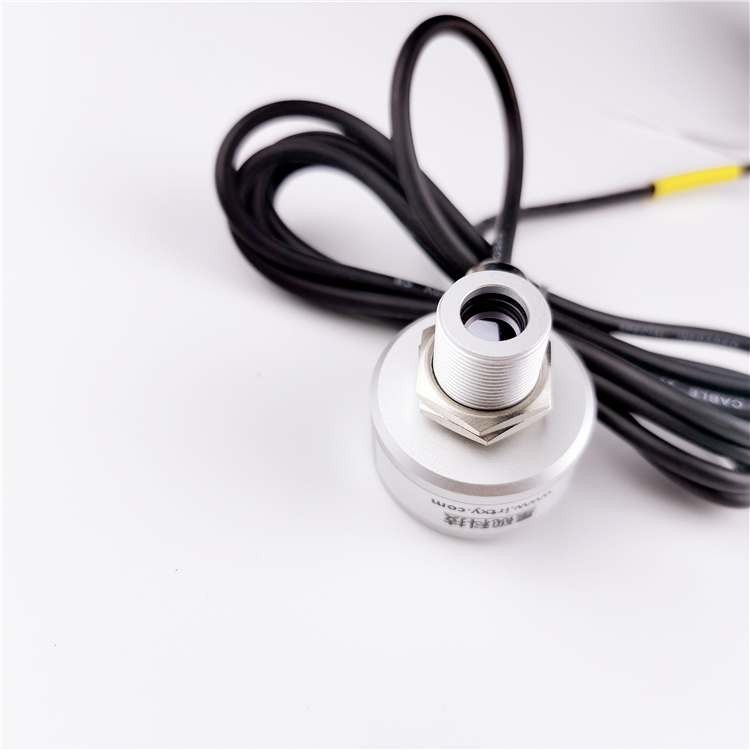

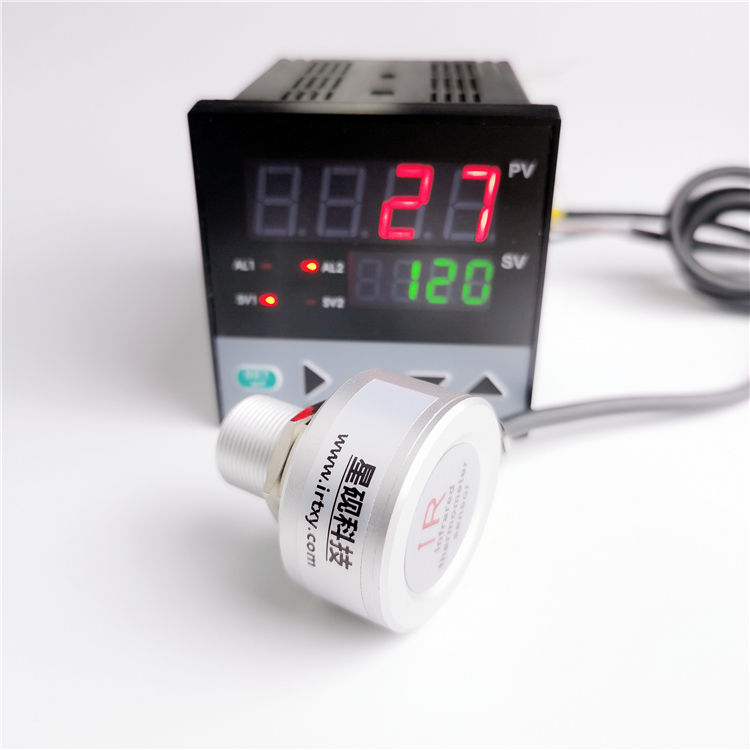

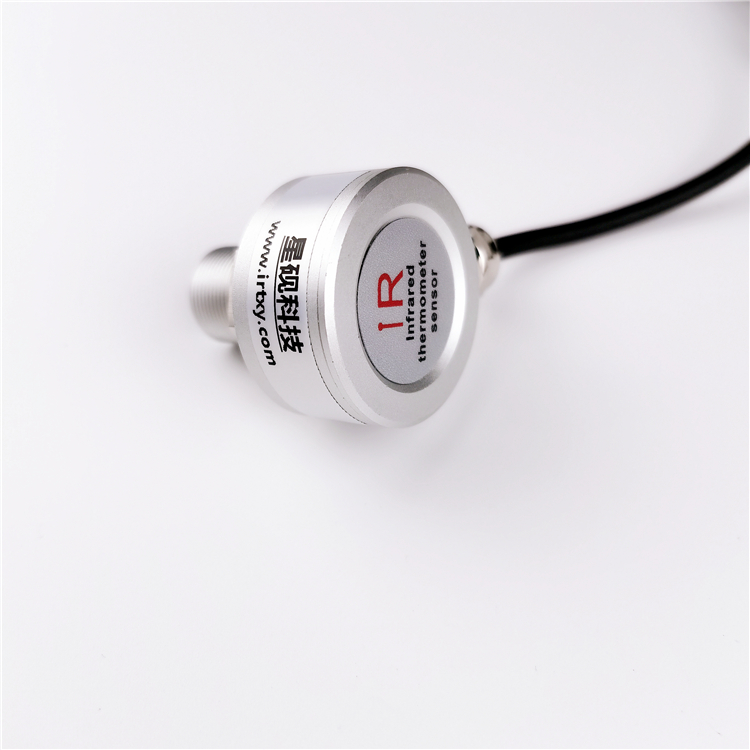

XY-DTT Series Compact Non-Contact Temperature Sensor/Transmitter With 4-20mA Output Signal

•   Temperature measurement range -20°C ~ 800°C

•   Non-contact temperature measurement

•   Emissivity 0.95 or 1.0 (default 1.0)

•   Suitable for measuring non-metal or coated metal

•   Cable length 2 meters (various lengths can be customized)

•   Sandblasted aluminium alloy

•   2-wire, 3-wire, 4-wire output

•   Responsive and high quality

Xingyan Electronics XY-DTT series adopts sandblasted aluminum alloy protective shell, which is resistant to dirt and durable; it has no cooling time and can withstand temperature of 60 °C. Enhanced anti-jamming to work in increasingly complex electromagnetic environments.

Xingyan Electronics XY-DTT  series of online infrared thermometers are especially suitable for installation on machines and equipment with only a small space due to their unique T-shaped design, such as power distribution cabinets and other equipment.

Infrared Temperature Sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

Basic Details

Model:              XY-DTT  Series

Range:               -20℃~100℃ / 0℃~100℃ / 0℃~200℃ / 0℃~300℃ / 0℃~500℃ / 0℃~600℃ / 0℃~800℃ ......（Optional temperature range）

Output:              4-20mA

Accuracy:           ±1% or ±1°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  300 ms (95% Response)

Spectral range:   8 ~14 μm

Voltage:             12-24 V DC

Field of View:     20:1

Output impedance:50Ω

Appearance properties

Material:             Sandblasted aluminum alloy

Dimensions:       Φ18×42mm

Hole size:            M18

cable length:       2m(Can be customized length)

Weight:               About 150g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
