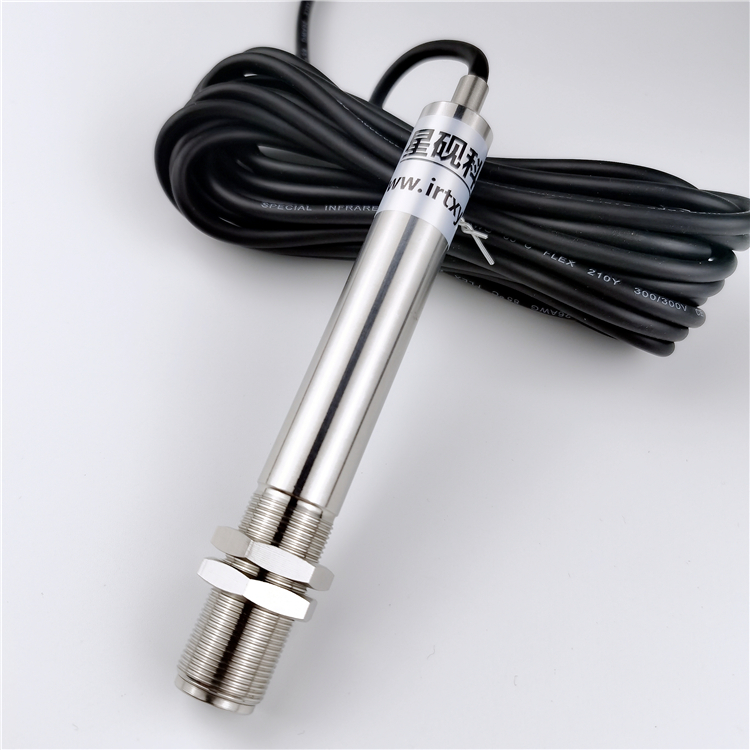

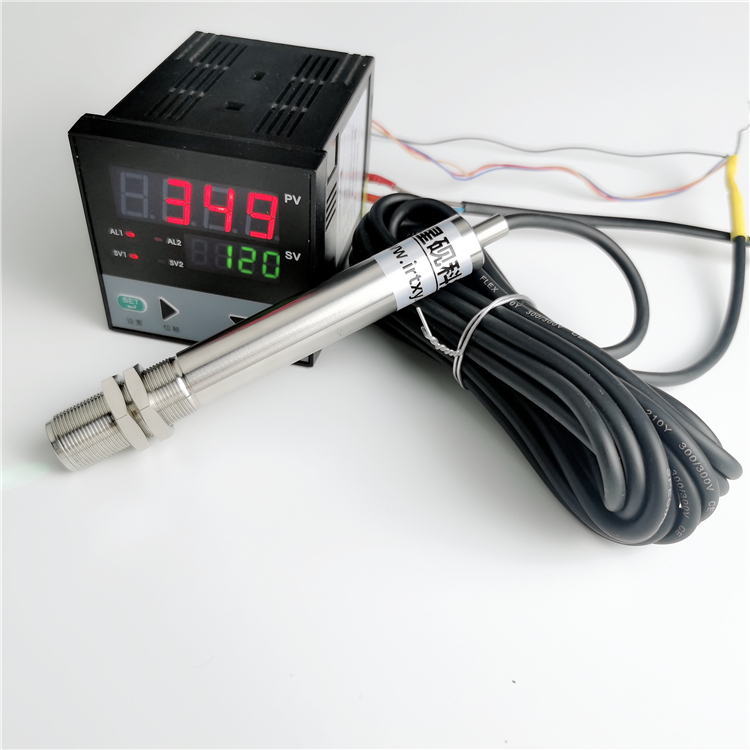

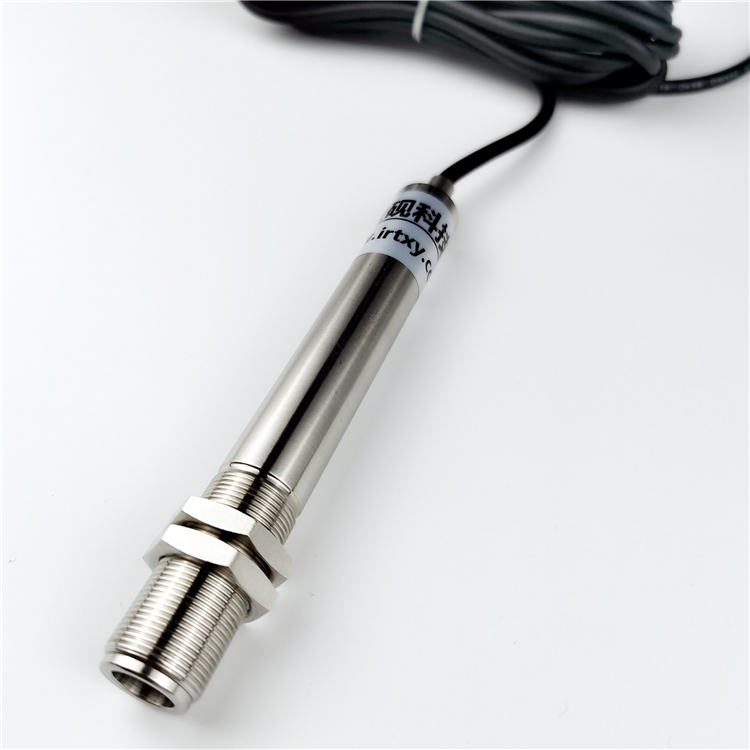

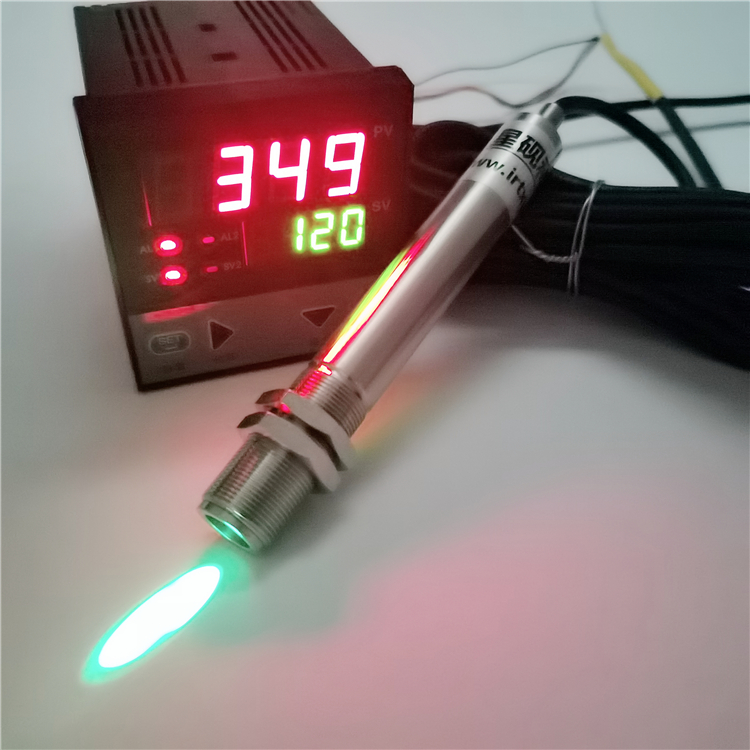

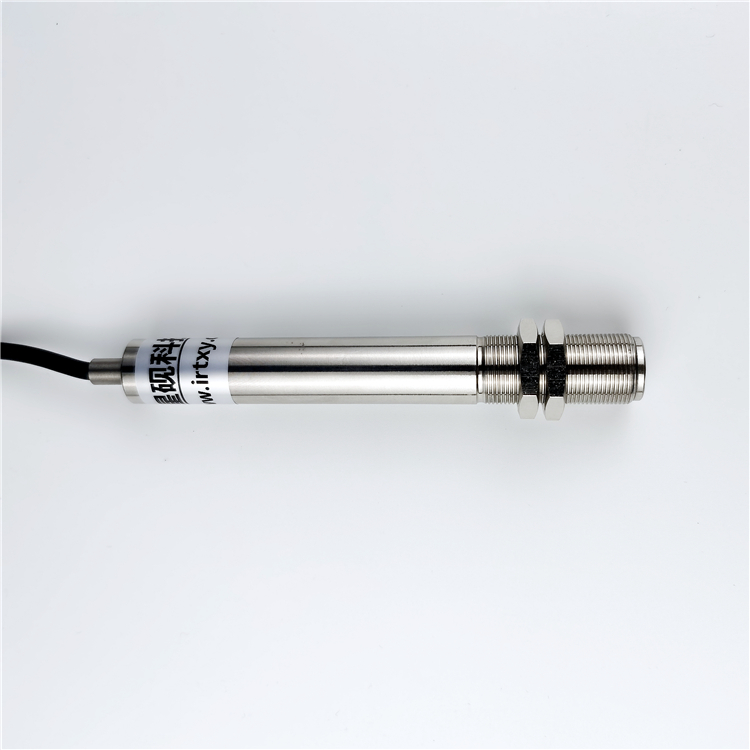

XY-LAS  Series,Infrared laser Temperature Sensor, Dual Laser Aiming, Short Wave

•  Temperature measurement range: 150℃~2400℃ (Optional temperature range)

•  Suitable for measuring metals and metal solutions

•  Field of View 100:1

•  Output signal 4-20mA

Xingyan Electronics The XY-LAS  series Infrared laser Temperature Sensor is easy to install, and the standard threads on the metal shell can be quickly connected to the installation site;

With the function of adjustable emissivity, it has a wider range of applications than previous sensors with fixed emissivity;

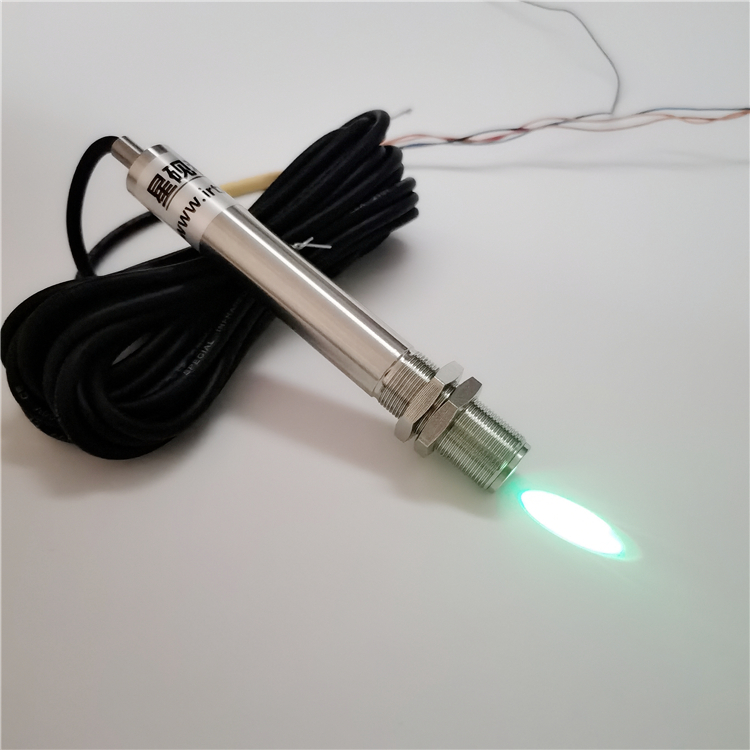

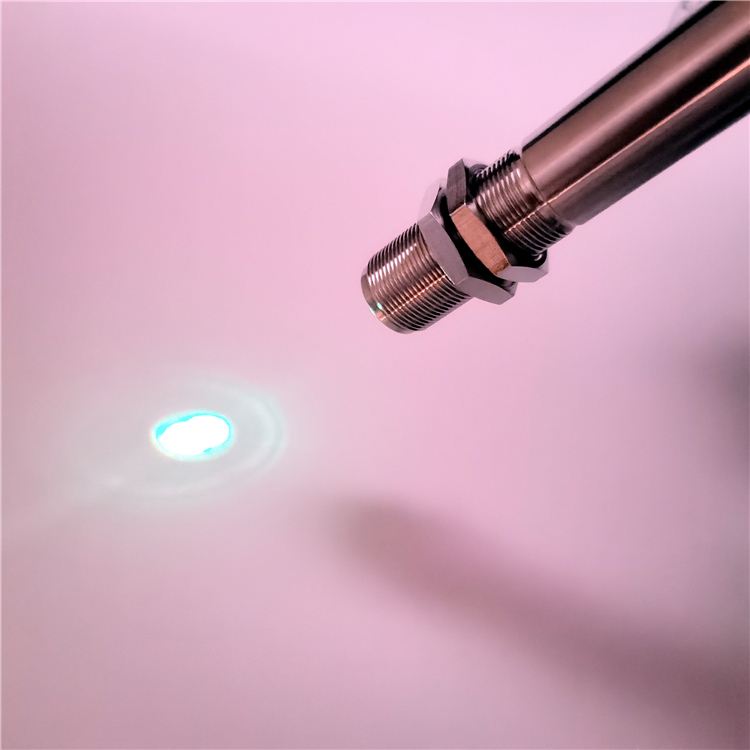

XY-LAS  series Infrared laser Temperature Sensor has a dual laser aiming function, which changes the structure of the previous long-wave probe that requires an external aiming method, making the temperature measurement more vivid and accurate;

No cooling time, can withstand temperature of 50℃, strengthen anti-interference, in order to work in increasingly complex electromagnetic environment.

Basic Details

Model:               XY-LAS  Series

Range:               350-1200℃，500-1400℃，700-1700℃，800-2000℃

Output:              4-20mA

Accuracy:           ±1% or ±2°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  30 ms (95% Response)

Spectral range:   1.0 ~3.0 μm

Voltage:             12-24 V DC

Field of View:     100:1

Output impedance:50Ω

Appearance properties

Material:             Stainless Steel

Dimensions:       Φ18×145mm

Hole size:            M18

Cable length:       5m(Can be customized length)

Weight:               About 300g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
