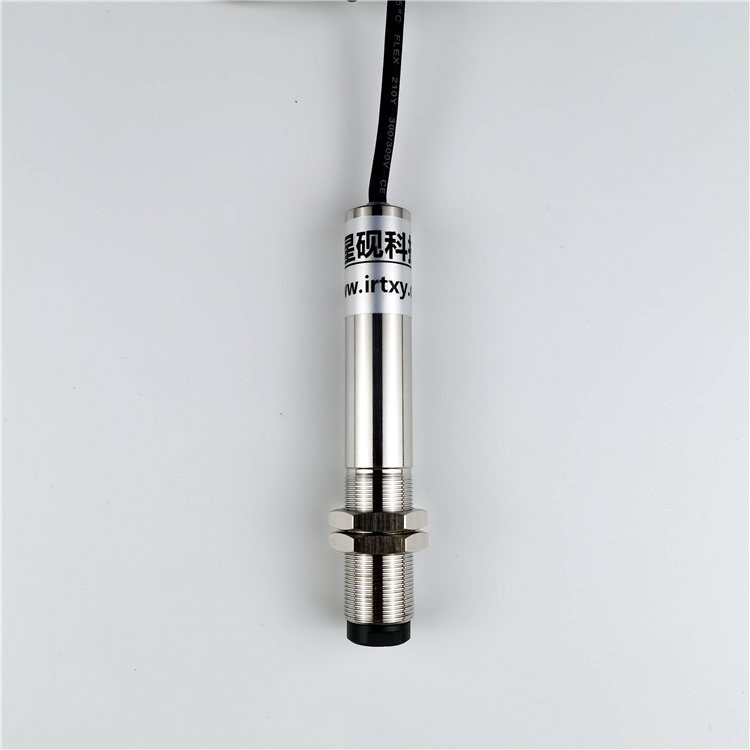

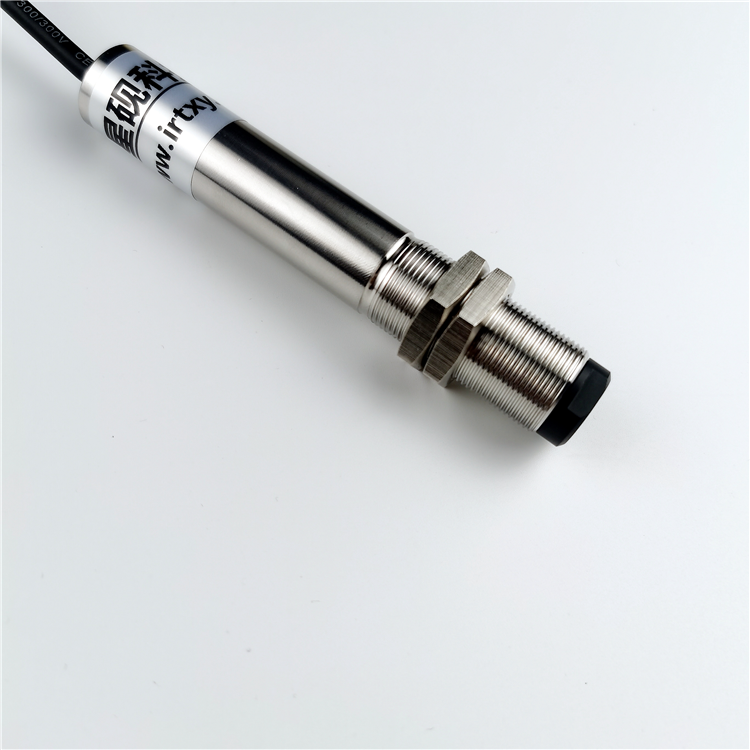

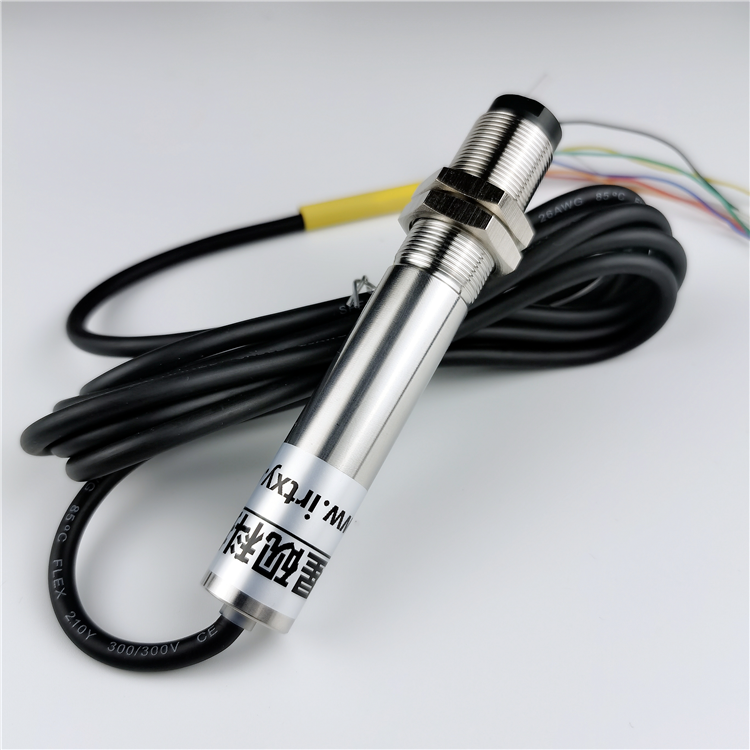

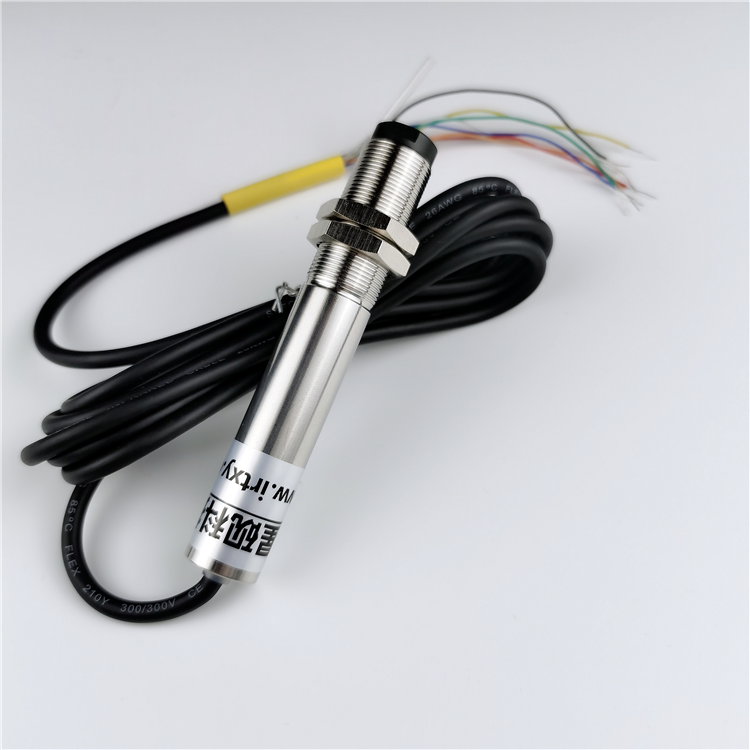

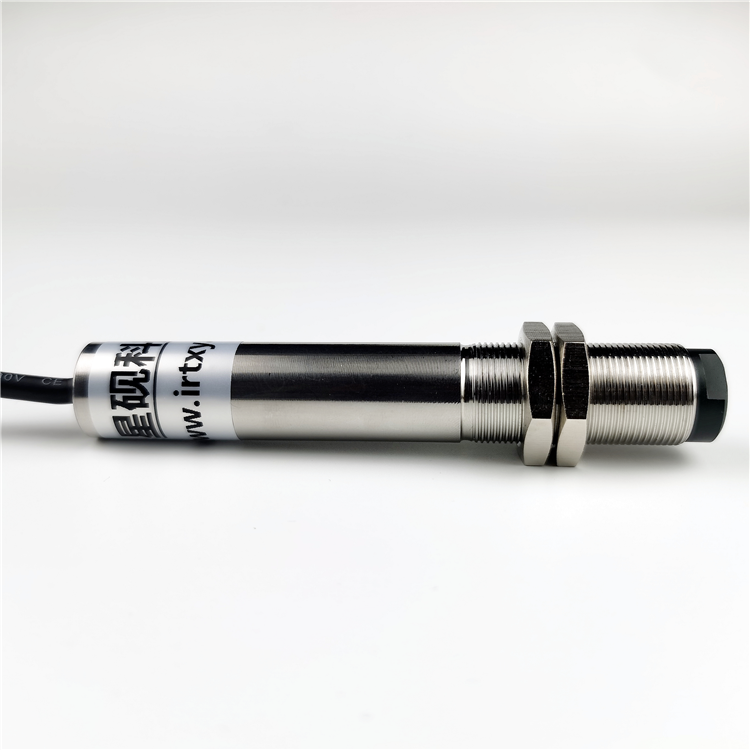

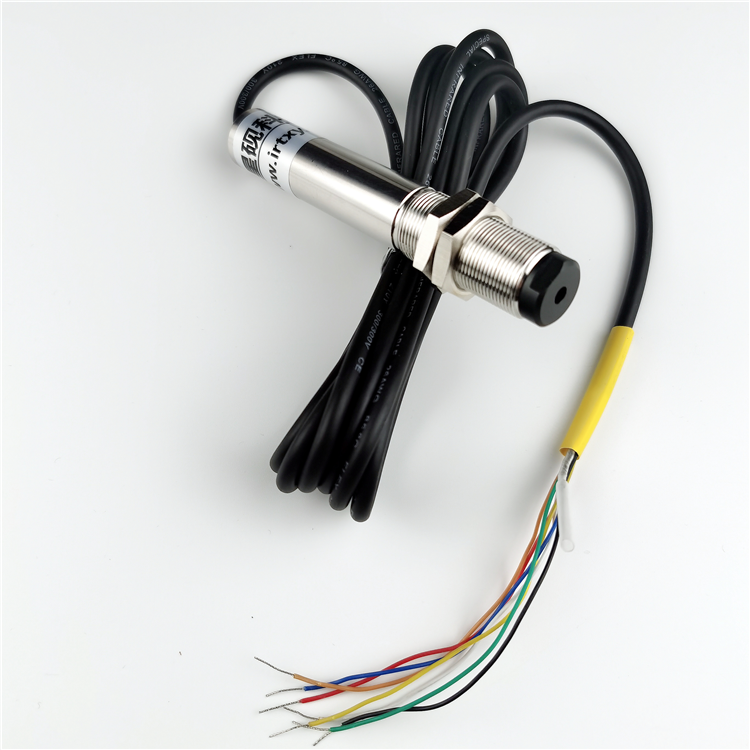

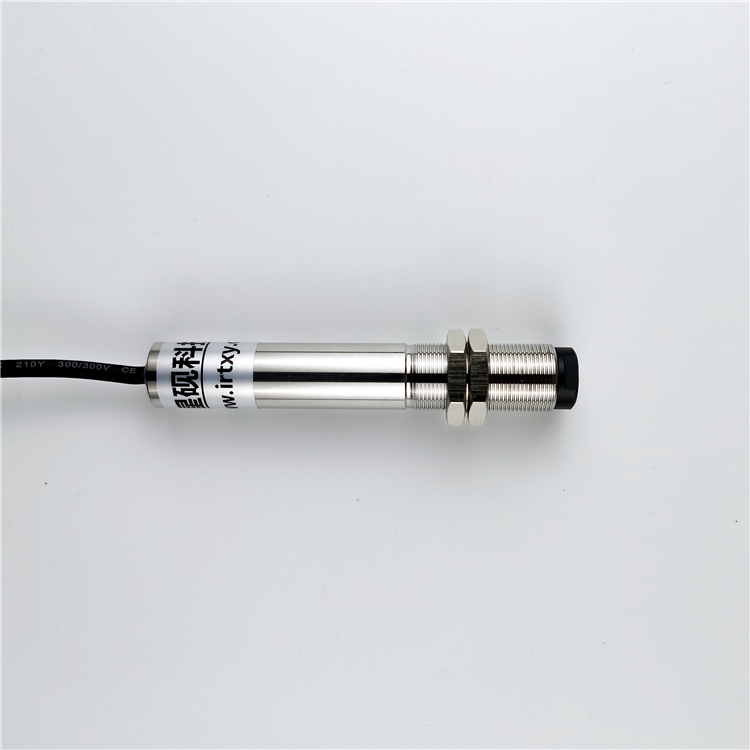

XY-W-A Series, Anti-microwave non-contact infrared temperature sensor With 4-20mA Output Signal

•   Temperature measurement range -30°C ~ 1200°C

•   Non-contact temperature measurement

•   Fixed emissivity 0.95

•   Anti-microwave function

•   Suitable for measuring non-metal or coated metal

•   Output signal optional 4-20mA

•   Cable length 2 meters (various lengths can be customized)

•   2-wire, 3-wire, 4-wire output

•   Responsive and high quality

•   Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

Xingyan Electronics Non-contact Infrared Temperature Sensor is a range of high quality, low cost, compact sensors which measure the temperature of inaccessible or moving objects and materials.

The Xingyan's infrared temperature sensor ,Non-contact temperature measurement is the advantage of infrared thermometers, allowing users to easily measure targets that are difficult to access or move.

XY-W-A Series added special protection accessories, especially suitable for microwave heating equipment, will not be interfered by microwave signals.

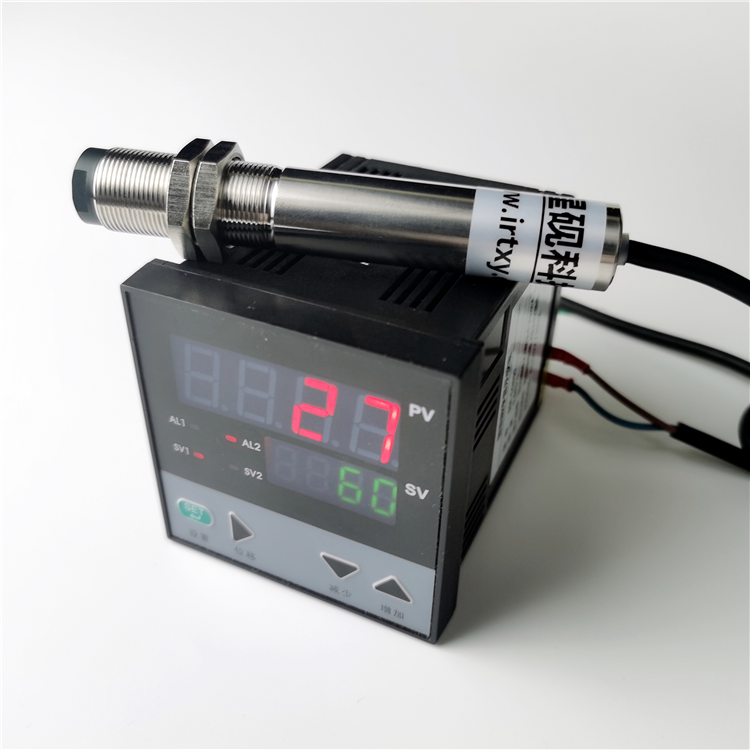

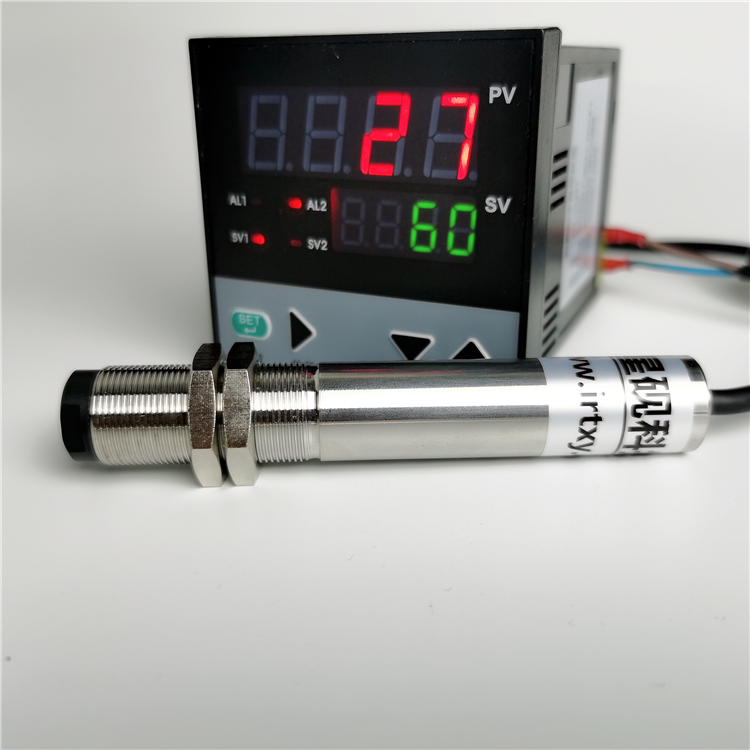

The industry standard analog signal output of infrared temperature sensor can be directly connected to most instruments, controllers, data recorders, computer boards and PLCs.

Basic Details

Model:               XY-W-A  Series

Range:               -60℃~1300℃（Optional temperature range）

Output:              4-20mA

Accuracy:           ±1% or ±1°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  300 ms (95% Response)

Spectral range:   8 ~14 μm

Voltage:             12-24 V DC

Field of View:     20:1

Maximum current:50mA

Appearance properties

Material:             Stainless Steel

Dimensions:       Φ18×110mm

Hole size:            M18

cable length:       2m(Can be customized length)

Weight:               About 180g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
