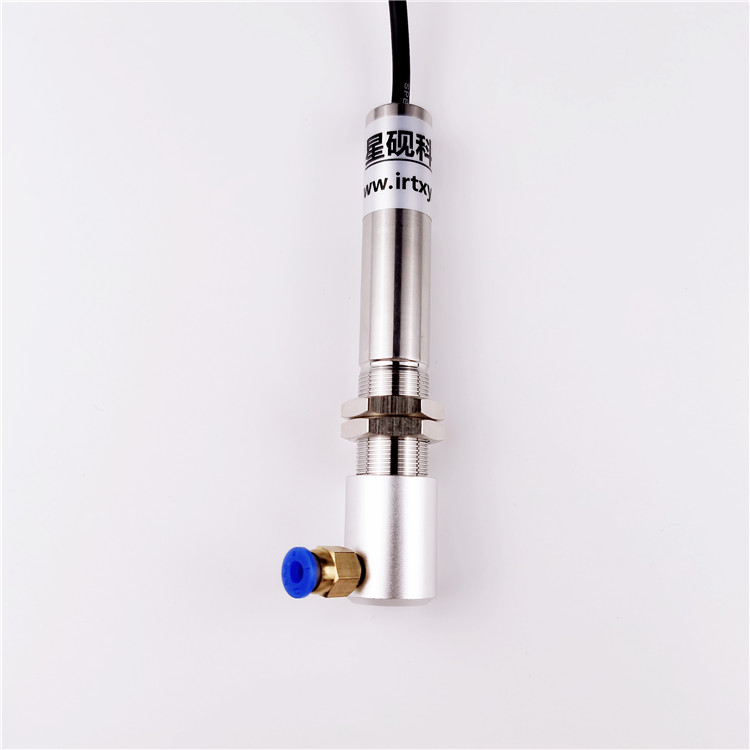

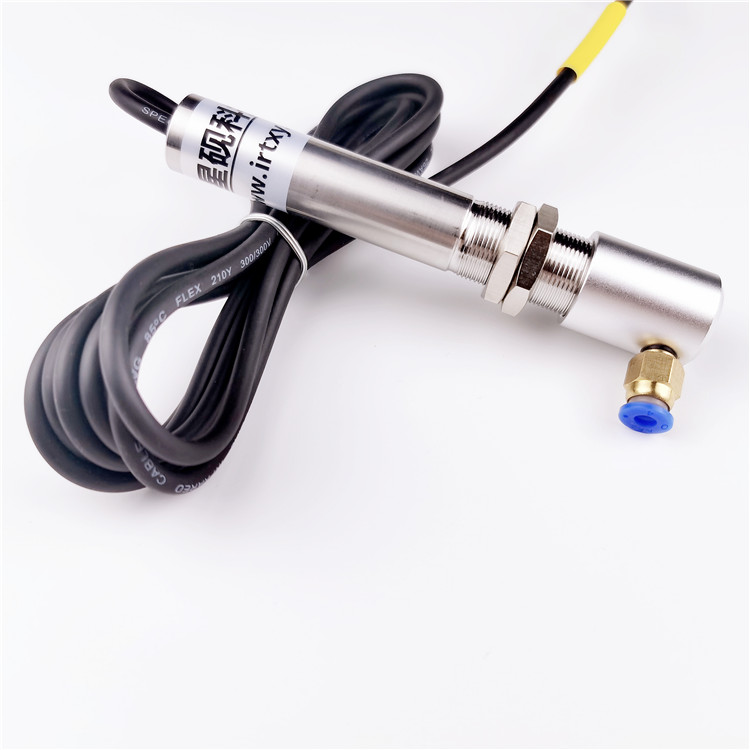

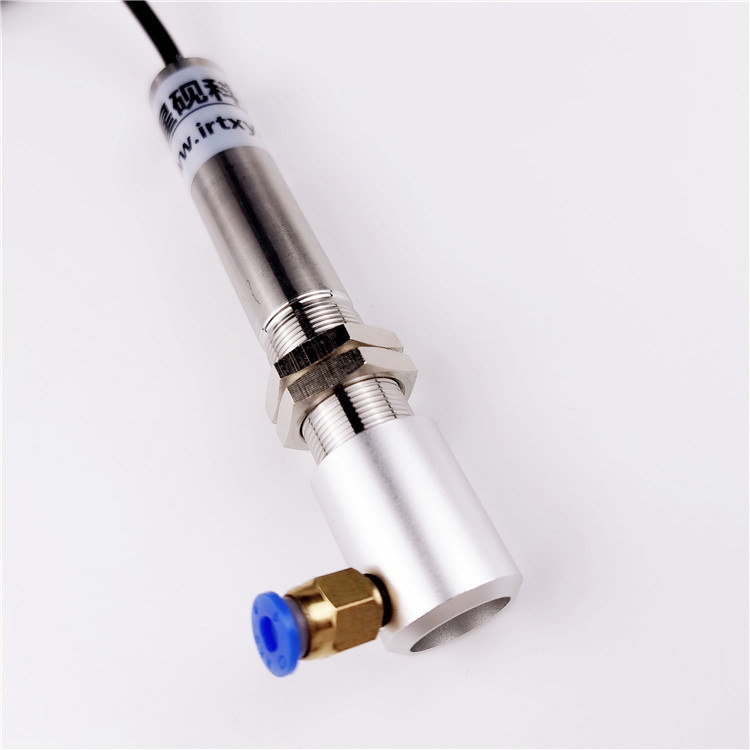

Waterproof Infrared Temperature Sensor Specially designed for waterproof needs of the site, such as humid environment, outdoor, etc.

•   Temperature measurement range -30°C ~ 1300°C

•   Non-contact temperature measurement

•   Fixed emissivity 0.95

•   Suitable for measuring non-metal or coated metal

•   Output signal optional 4-20mA

•   Cable length 2 meters (various lengths can be customized)

•   2-wire, 3-wire, 4-wire output

•   Responsive and high quality

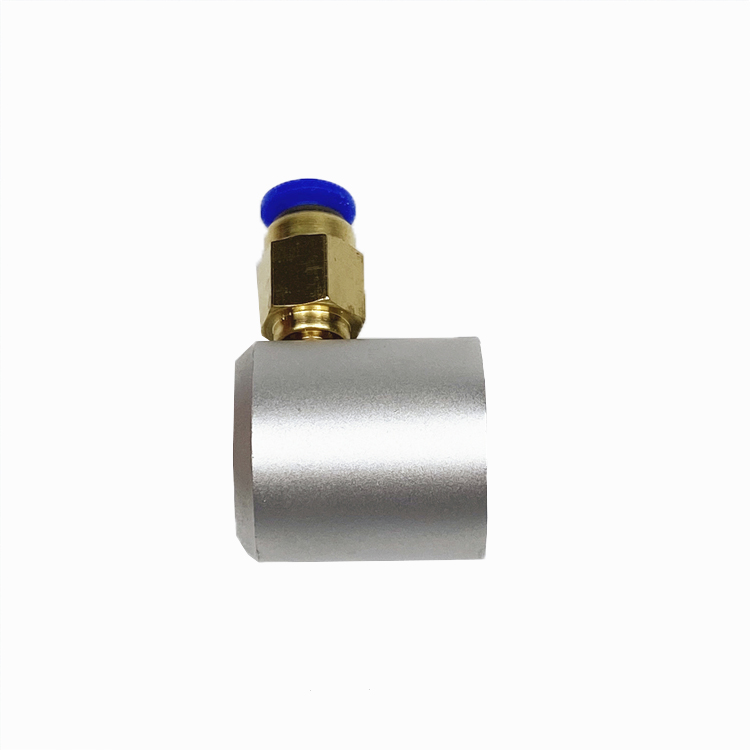

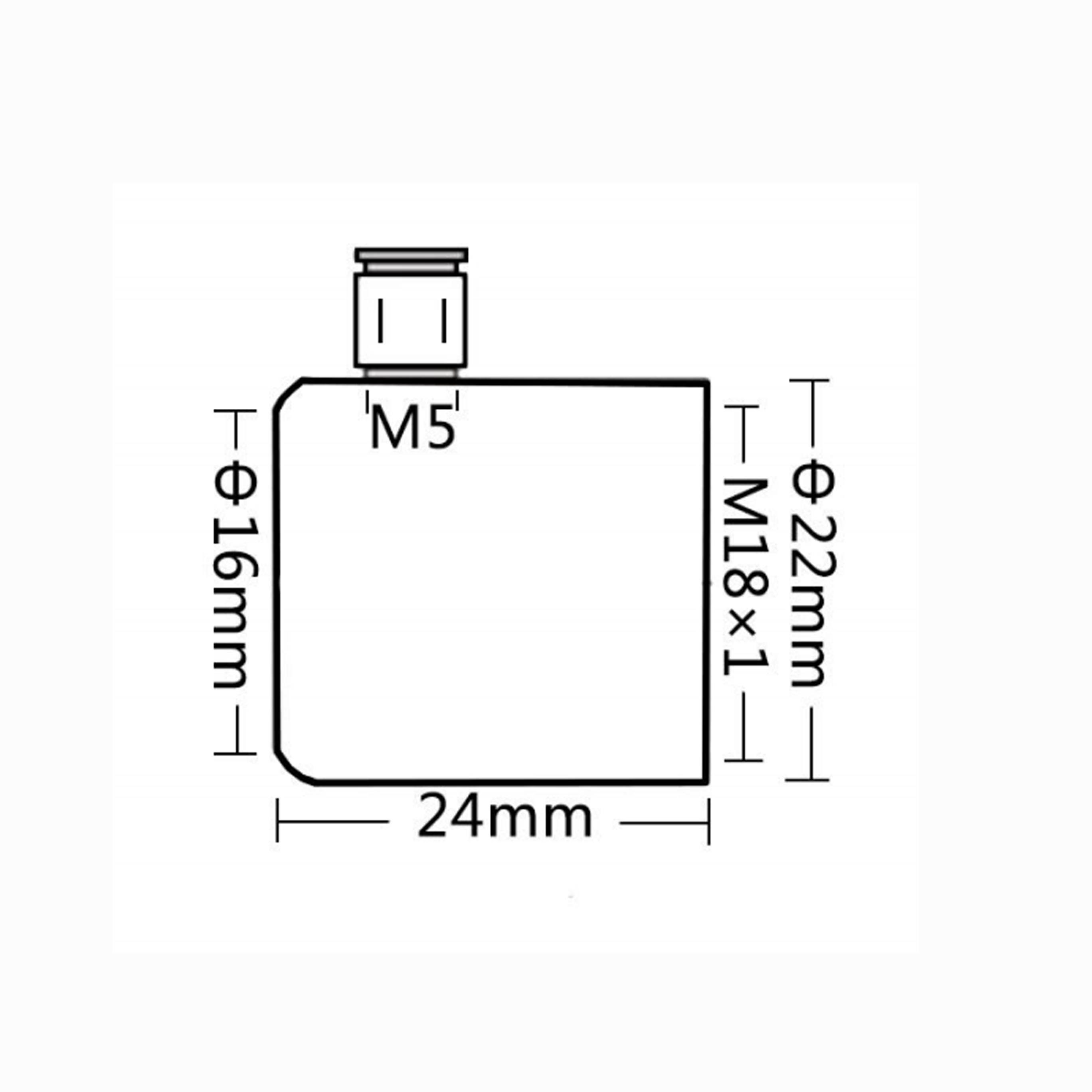

•   Optional Air/Water Cooled Housing, Air Purge Collar, Laser Sighting Tool and Mounting Brackets

Infrared Temperature Sensors have no drift and have high repeatability & interchangeability giving them the edge needed to increase production process speed and quality.

Basic Details

Model:               XY-WP  Series

Range:               0℃~100℃ / 0℃~200℃ / 0℃~300℃ / 0℃~500℃ / -20℃~100℃........（Optional temperature range-30~1200℃）

Output:              4-20mA

Accuracy:           ±1% or ±1°C（Ambient temperature: 23℃±5℃）

Repeatability:     ± 1℃

Emissivity:           0.95

Response time:  300 ms (95% Response)

Spectral range:   8 ~14 μm

Voltage:             12-24 V DC

Field of View:     20:1

Maximum current:50mA

Appearance properties

Material:             Stainless Steel

Dimensions:       Φ18×134mm

Hole size:            M18

cable length:       2m(Can be customized length)

Weight:               About 280g

Use environment

Environmental (IP) rating:   IP65

Ambient temperature:         0℃~50℃

Humidity:                             95% (No condensation)
